The HLG 135 Rspec LED Grow Light Kit combines Samsung LM301H white LEDs and Osram SSL deep-red LEDs for compact indoor vegetative and flowering spaces. This is an unassembled kit: the Quantum Board, heatsink, driver, and wiring components must be assembled before use.

Compact full-cycle lighting

The included specification sheet recommends a 2 × 2-foot flowering footprint, with a maximum listed flowering footprint of 2 × 3 feet, or a 3 × 3-foot vegetative footprint. Actual coverage depends on mounting height, crop requirements, and the target light level. The passive-cooled design uses a separate finned heatsink, with a listed adjustable power range of 60–150 watts.

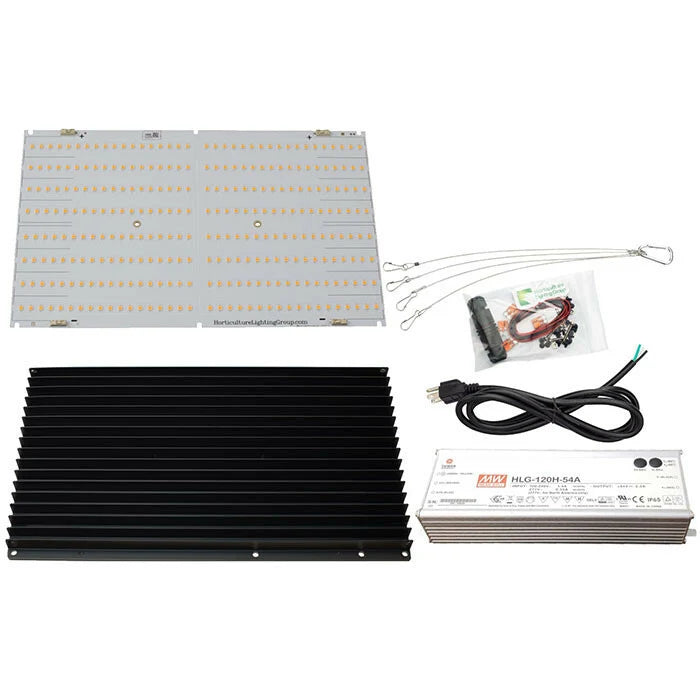

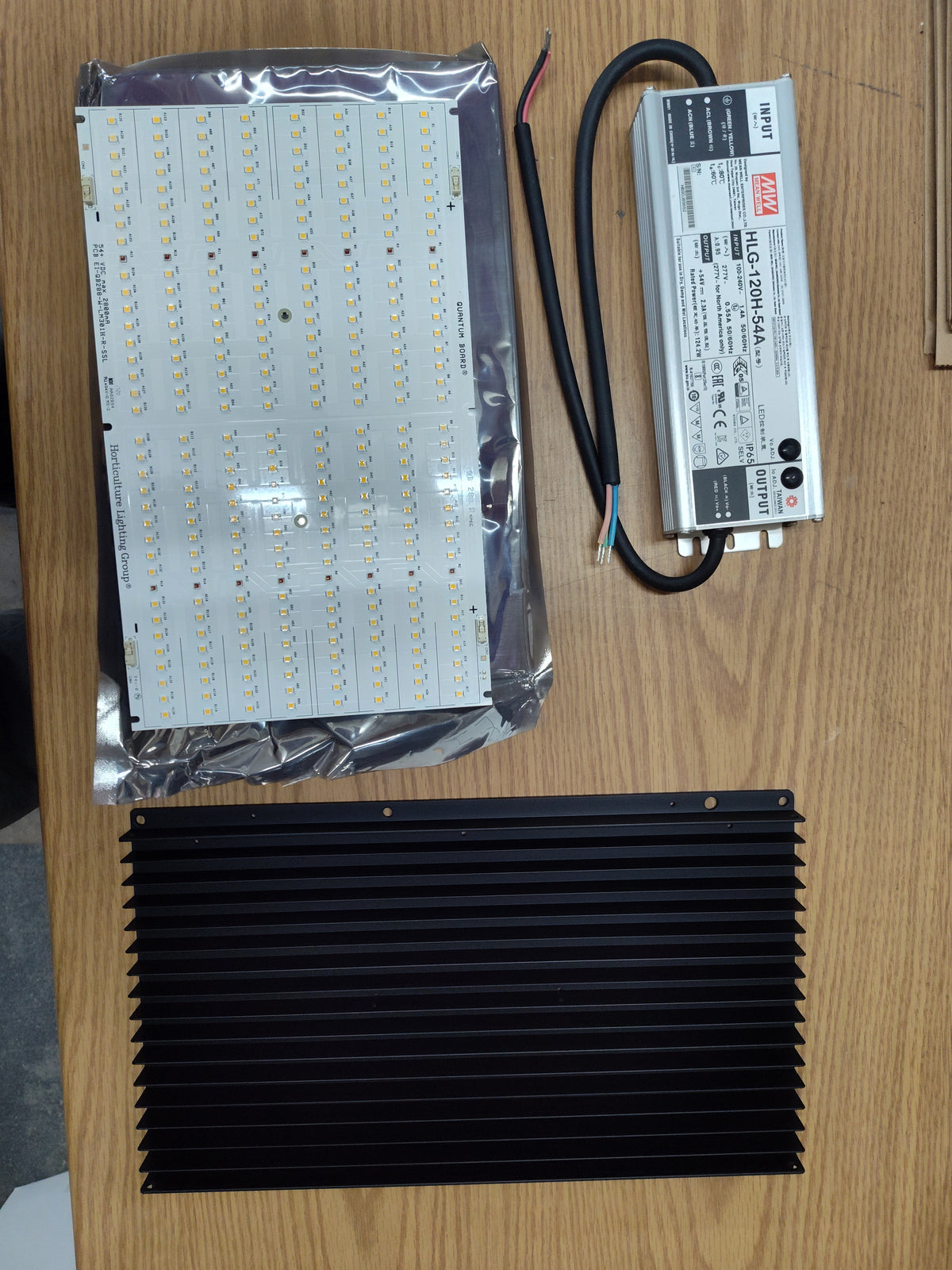

Included components

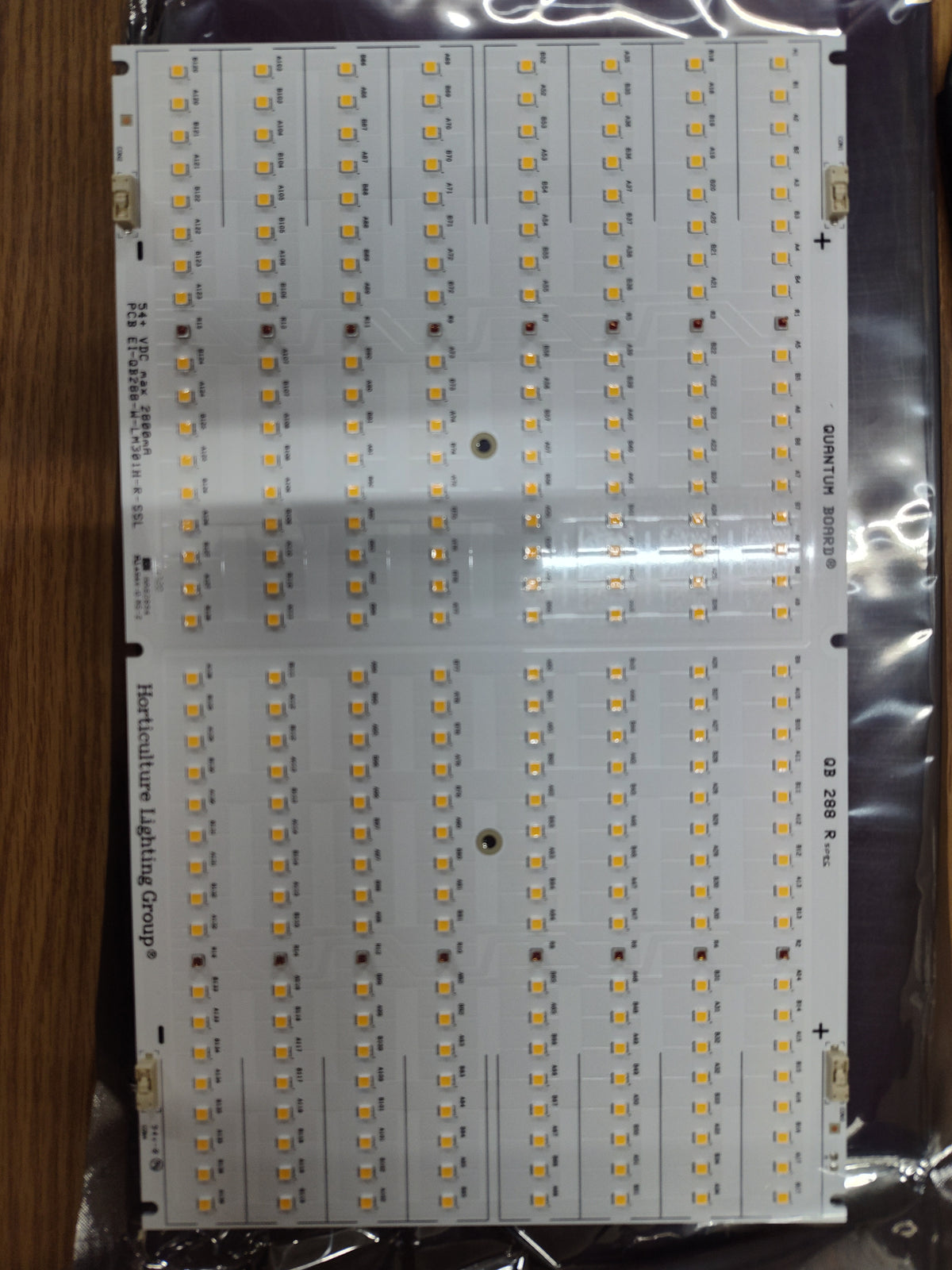

• One QB288 V2 Rspec Quantum Board with Samsung LM301H and Osram SSL LEDs
• One Slate 2 predrilled 340 mm heatsink

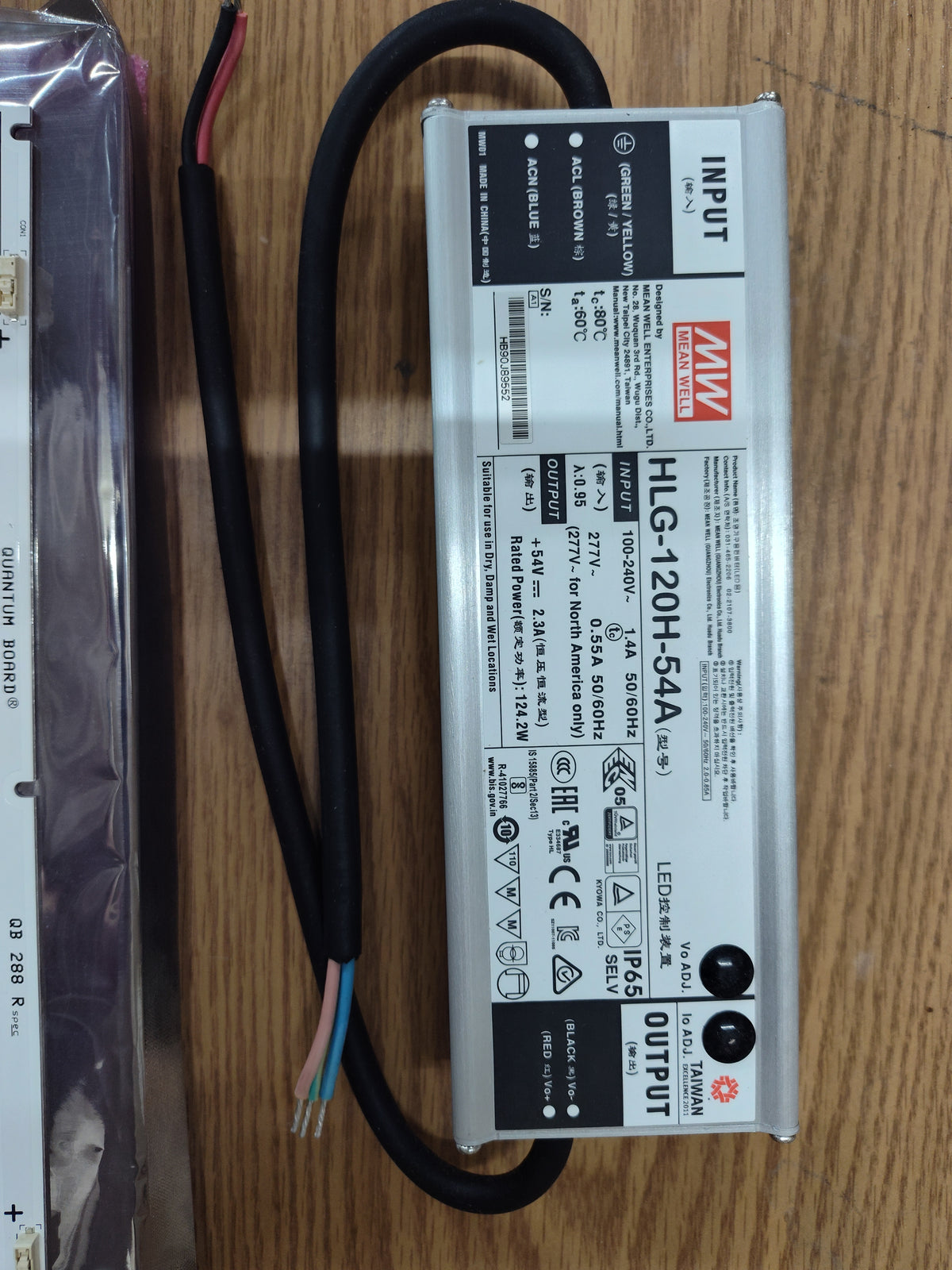

• One Mean Well HLG-120H-54A LED driver
• 6-foot NEMA 5-15P power cord or equivalent, with cable connector
• 2 feet of solid-core wire and two Wago connectors for DC wiring, as listed on the kit sheet

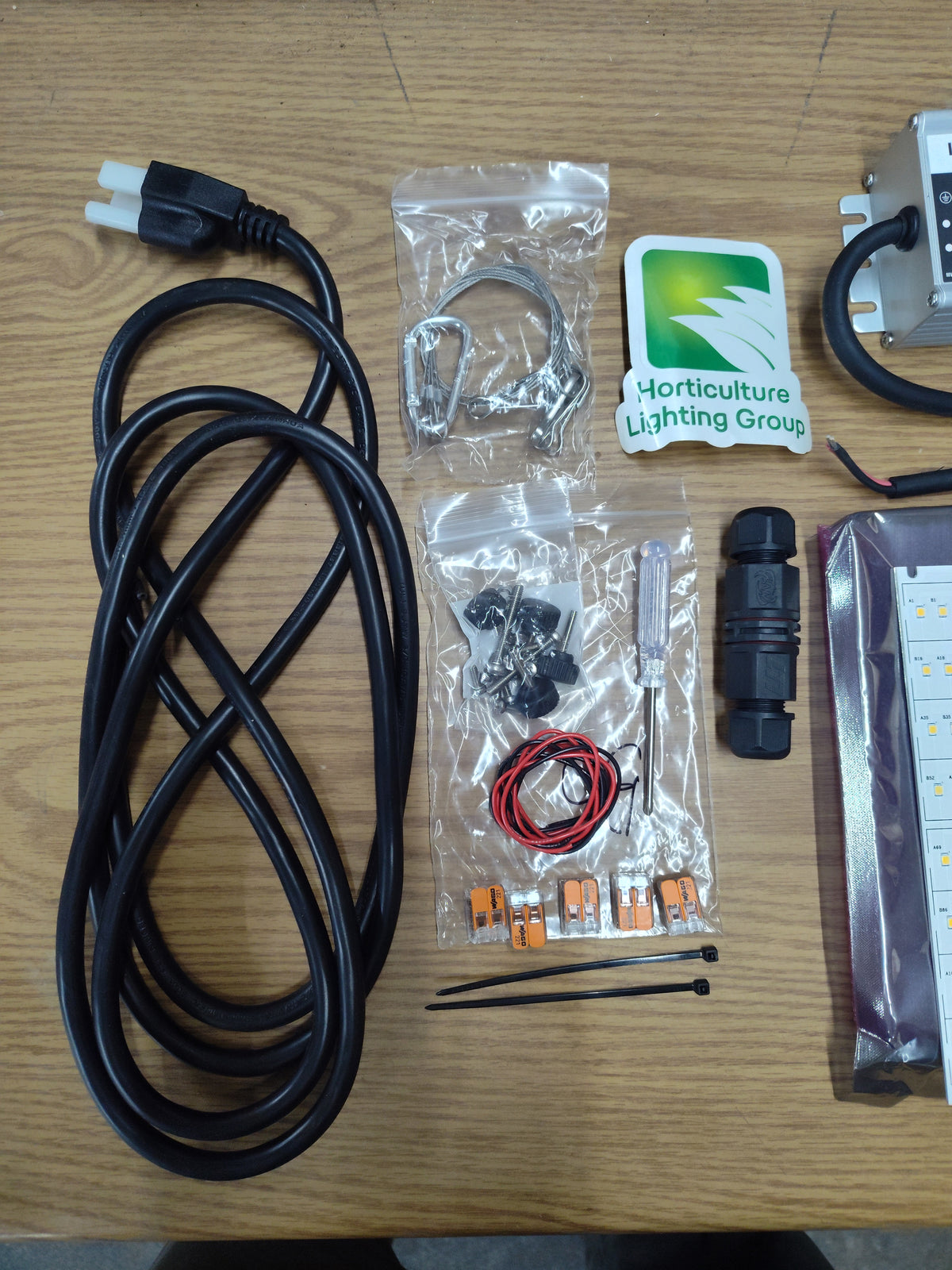

• Hanger clips and cables, wiring connectors, and mounting hardware

Specifications

• Nominal model class: 135-watt LED grow light kit
• Adjustable power range: 60–150 watts
• Recommended flowering coverage: 2 × 2 feet
• Maximum listed flowering coverage: 2 × 3 feet
• Vegetative coverage: 3 × 3 feet
• Cooling: passive heatsink

Assembly and installation

Assembly and electrical connections are required; this is not a ready-to-hang, prewired fixture. Follow the manufacturer's assembly instructions for board mounting, heatsink installation, driver wiring, suspension, and adjustment. Match the power cord and installation to the electrical supply, and have a qualified installer handle electrical connections if needed. Sold as one kit.
