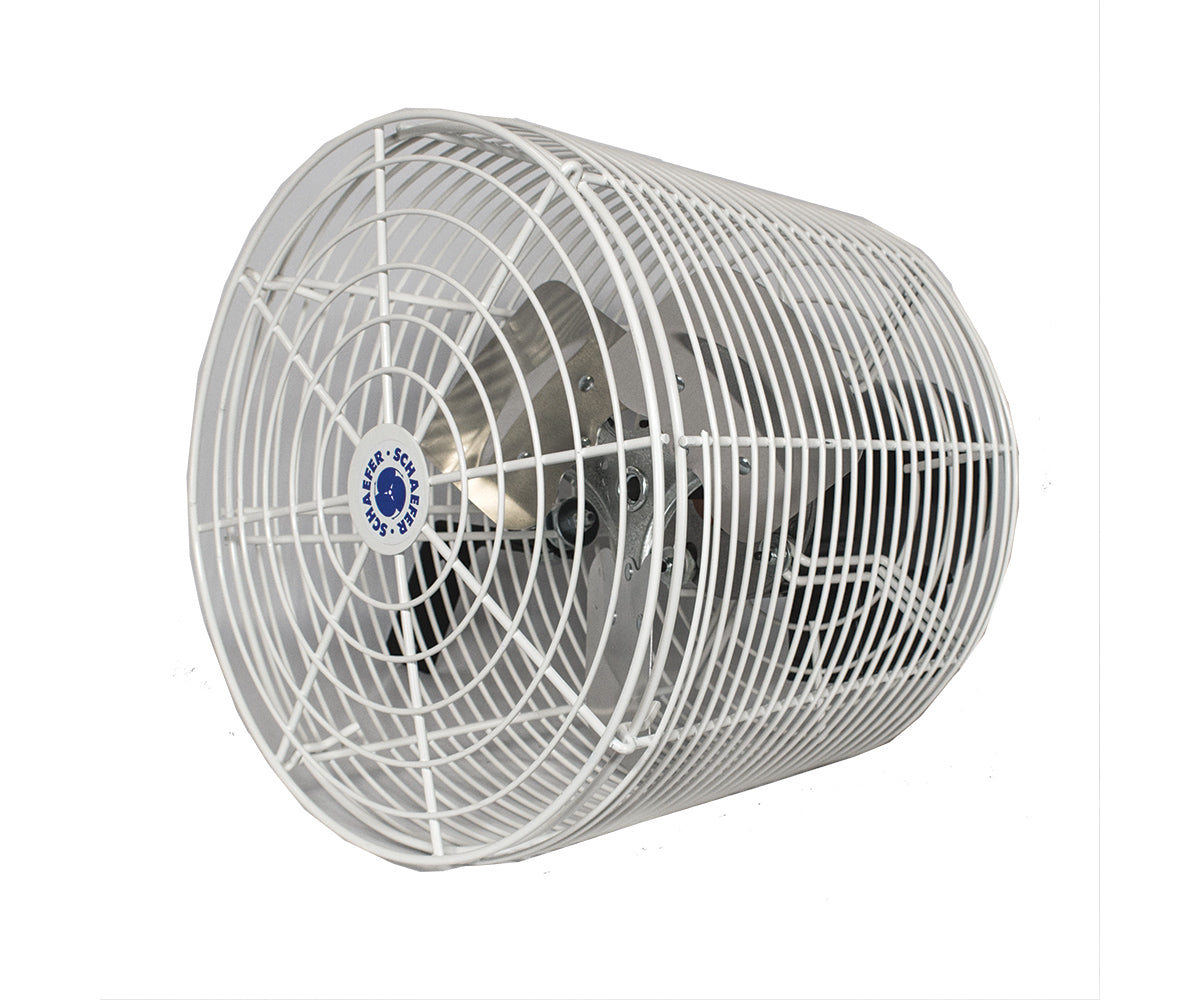

Schaefer Versa-Kool VK12 is a 12-inch deep-guard circulation fan for greenhouse horizontal air flow and other commercial growing applications. Use it to circulate air within the growing space and help mix air between the crop area and upper portions of the structure.

Circulation fan features

• 12-inch, five-blade aluminum fan
• White powder-coated steel guards
• Totally enclosed, thermally protected motor
• Single-speed operation at 1,725 RPM
• Standard VS12FMT ceiling mount included, according to the manufacturer specification sheet

Manufacturer specifications

• Model: VK12; Hydrofarm SKU: PCTVK12
• Airflow: 1,500 CFM under the manufacturer's stated test conditions
• Motor: 1/10 HP, single phase, 60 Hz
• Voltage: 115/230 V; current: 1.3/0.65 A
• Fan dimensions: 15 inches diameter × 14 inches deep
• Product weight: 18 lb; published shipping weight: 19 lb

Installation and selection

This fan circulates air within a space; it does not replace an exhaust ventilation system. Confirm supply voltage, wiring configuration, mounting requirements, and clearances before installation. The manufacturer’s VK12 specification sheet states that the guard spacing is not OSHA compliant and specifies mounting above seven feet. Follow the current manufacturer instructions and applicable installation requirements.

Specifications are drawn from the supplied VK12 manufacturer sheet dated May 2014. Actual airflow depends on installation and operating conditions.
