Easily Measure Light Intensity In Your Greenhouse
SenseCAP LoRaWAN S2102 Sensor measures light intensity at the range from 0 to 160000 lux, with an accuracy of ±5% and a resolution of 1 lux, making it widely applicable in industrial environmental sensing scenarios. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and upgrade. Benefiting from LoRa and IP66 design, this sensor features stability and reliability and can cover a long transmission range while keeping lower power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of the deployment, and can be disassembled and installed in a few minutes.
Feature
- Compatible with Worldwide LoRaWAN® Networks: Compatible with different types of LoRaWAN® gateways to enable fast connection with LoRaWAN® networks (support the universal frequency plan from 863MHz ~928MHz).
- Long Range & Battery powered: Ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes. Powered by easily replaceable standard Li-SOCl2 battery (type: ER34615) with Max.10 years of battery life.
- Designed to Use in Harsh Environments: -40? ~ 85? operating temperature and IP66-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
- Simple Configuration: SenseCAP provides a no-code experience that enables users to finish configuration with 4 steps through SenseCAP Mate APP.
Specifications
Light Intensity | |
Range | 0 to 160000 Lux |
Accuracy | ±5% |
Resolution | 1 Lux |
General Parameters | |
Product Model | S2102 |
Microcontroller | Wio-E5 |
Support Protocol | LoRaWAN v1.0.3 Class A |
Built-in Bluetooth | App Tool to change parameters |
LoRaWAN Channel Plan | IN865/EU868/US915/AU915/ AS923/KR920/RU864 * |
Max Transmitted Power | 19dBm |
Sensitivity | -136dBm@SF12 BW=125KHz |
Communication Distance | 2 to10km (depending on gateway antenna and environments) |
IP Rating | IP66 |
Operating Temperature | -40 to +85 °C |
Operating Humidity | 0 to 100 %RH (non-condensing) |
Device Weight | 280g |
Certification | |

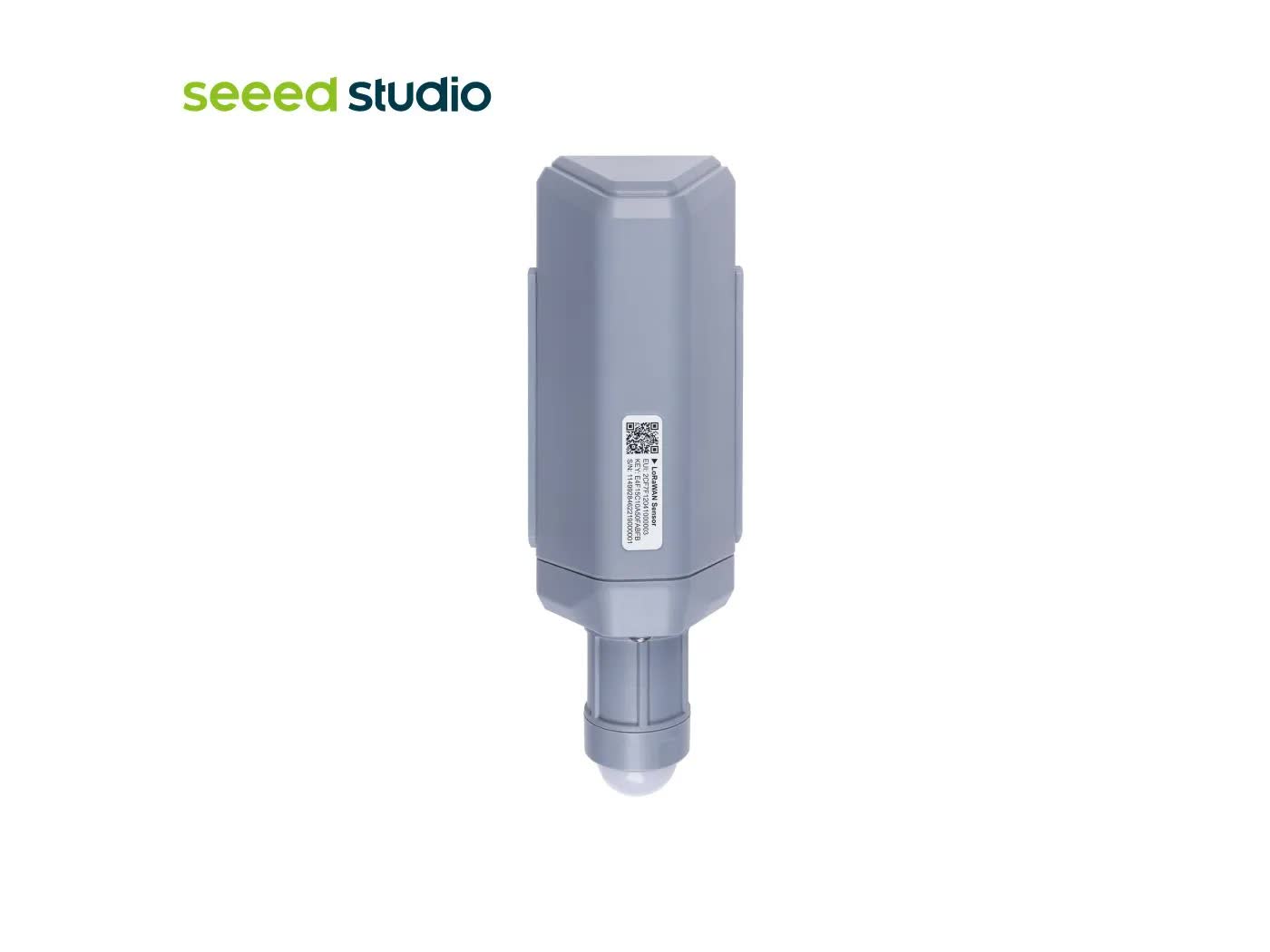

SenseCAP S2102 -Wireless Light Intensity Sensor
SenseCAP S2102 -Wireless Light Intensity Sensor
SKU: S-2102
UPC: 114992868
Questions about this item? Be the first to ask here.
Low stock: 3 left
