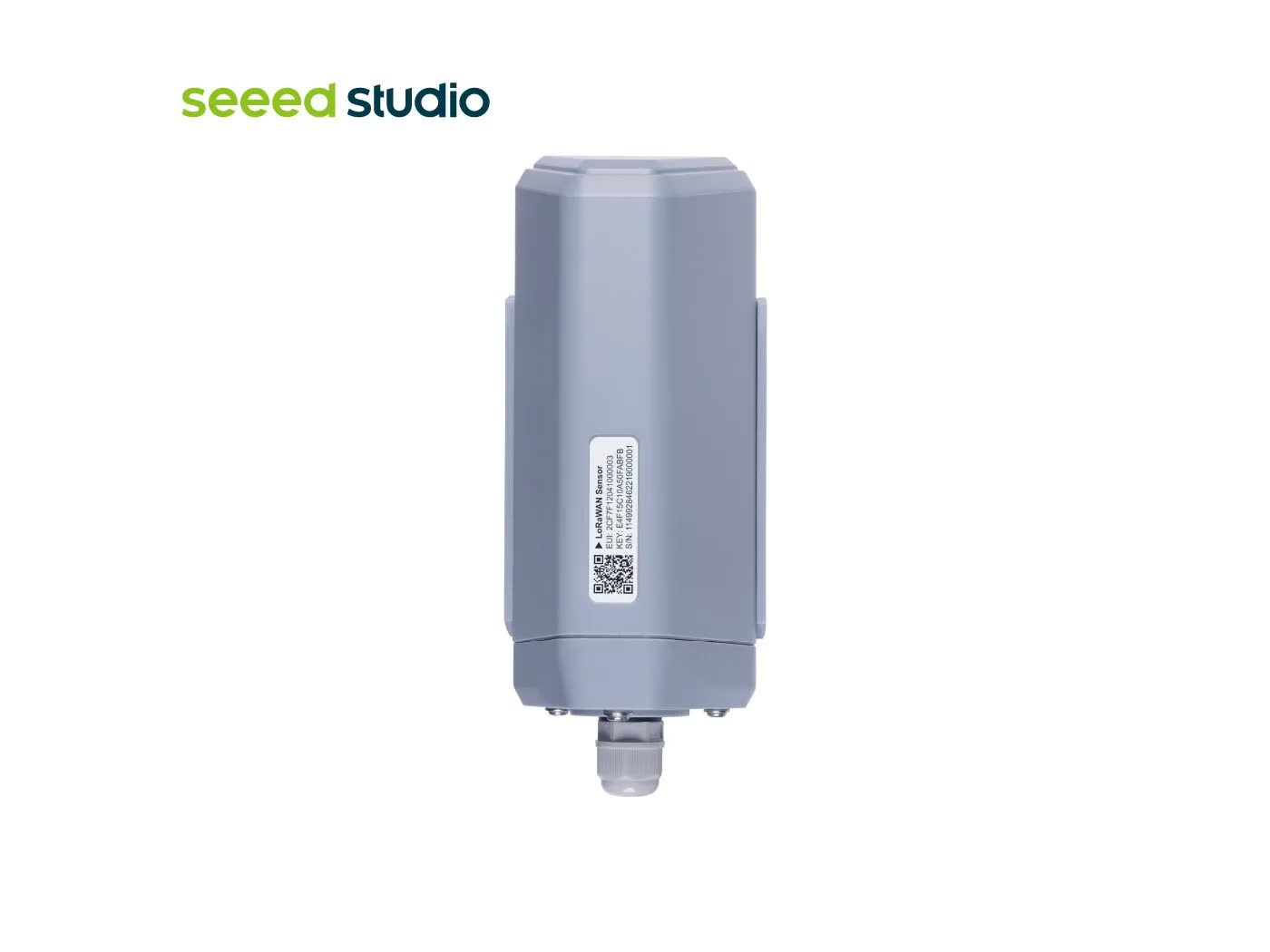

SenseCAP S2100 Data Logger/DTU can connect to MODBUS-RTU RS485/Analog/GPIO sensors and transmit data from sensors to the LoRaWAN network. Benefits from LoRa and IP66 design, this device features stability and reliability and can cover a long transmission range while keeping ultra-low power consumption, ideal for outdoor use. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. It can be battery-powered or connected to a 12V external power supply. When the 12V power supply is connected, the replaceable built-in battery is set to be used as the backup power supply. What's more, with the help of S2110 converter, S2100 Data Logger/DTU is able to connect to Grove Sensor, it is an ideal solution for developing, fast prototyping, and small deployment for DIY Industrial level LoRaWAN Sensors.



Features

Strong Compatibility with different Sensors: supports all MODBUS-RTU RS485/Analog(4~20mA/0~10V) / GPIO(level/pulse) sensors.

Compatible with Worldwide LoRaWAN® Networks: Compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway. (support the universal frequency plan from 863MHz ~928MHz).

Long Range & replaceable Battery powered: With LoRaWAN® wireless transmission, S2100 supports 19Ah built-in battery and external 12V DC to supply devices, and ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes.

Designed to Use in Harsh Environments: -40? ~ 85? operating temperature and IP66 rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.

Remote configuration and management: Seeed provides SenseCAP Mate APP and SenseCAP Portal, allows users to remotely manage data and configure.

Description

S2100 LoRaWAN Data Logger/DTU supports MODBUS-RTU RS485/Analog/GPIO input and transmit the data from sensors to the LoRaWAN network.
